S8000 Pro Plus-FDP-KYRC-32H（FlexDigitalPrint）

Printhead Configuration: Equipped with 32 Kyocera industrial printheads
Printing Speed: Max. 2700 sqm/h
Print Width: 2200mm
Ink Configuration: CMYK, LC, LM, LK, Grey, Fluorescent Red, Fluorescent Yellow
Print Media: Sublimation paper, titanium-coated paper, wallpaper and film

SPECIFICATION

Product Introduction

Name: S8000 Pro Plus-FDP-KYRC-32H（FlexDigitalPrint）
Brand: Yilijet/Xenons Inkjet Printing Solutions
Availability: InStock
Rating: 5 (1 reviews)

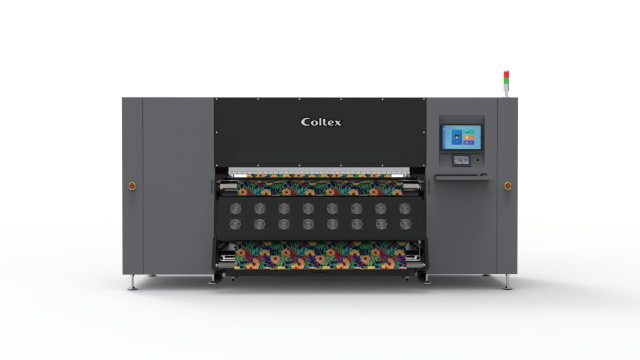

S8000 Pro Plus-KYRC-32H High-Speed Sublimation Printer

Developed for mass digital printing of home textiles, garments and decorative fabrics. Fitted with Kyocera EX600RC industrial printheads to deliver multi-color printing solutions, the machine features a standard 2200mm print width with a maximum production output of 2700㎡/h.

It is configured with imported low-noise dual THK linear guides, maglev motors, magnetic grid drive system, framed straight-slot suction printing platform, triple-layer printhead protection and dual-layer circulating infrared drying system. Equipped with 15L large-capacity ink tanks and automatic negative-pressure ink supply system, it accepts raw rolls up to Φ1000mm and enables stable non-stop 24-hour mass production. With stable operation, high precision and outstanding productivity, it serves as core production equipment for textile printing manufacturers pursuing large-scale production.

Core Advantages

✅ Premium Multi-Printhead Setup, Max Output up to 2700㎡/h

Adopts 32 Kyocera EX600RC printheads to reach a top speed of 2700㎡/h, easily handling bulk orders and peak seasonal production demands.

✅ 2200mm Printing Width for One-Pass Home Textile Processing

The standard 2.2m working width perfectly matches wide-format materials including curtains, sofa fabrics and bedding without splicing, improving finished quality and production efficiency.

✅ Maglev Drive System for Low-Noise & Stable High-Speed Running

Combination of low-noise dual THK guides, maglev motors and magnetic grid positioning avoids vibration and noise during high-speed operation, ensuring precise printing and extended equipment service life.

✅ Framed Straight-Slot Suction Printing Platform

Full-area even suction fits 22–110g sublimation transfer paper, keeping paper flat without wrinkles or offset to guarantee consistent printing results.

✅ Three-Tier Printhead Protection Reduces Wear & Maintenance Cost

Three-way anti-collision structure plus base anti-scratch design and laser height detection provide all-round printhead protection to prevent scratch damage and cut repair expenses.

✅ 15L Large Ink Tank with Automatic Negative-Pressure Ink Feed

15L high-volume ink storage paired with precise automatic negative-pressure control ensures stable uninterrupted ink supply to support round-the-clock continuous production.

✅ Dual-Circulation Infrared Hot-Air Drying for Instant Drying after Printing

Front-and-rear dual-sided hot-air drying offers uniform heating to prevent ink bleeding and sticking under high-speed printing and boost overall throughput.

✅ Large Roll Loading & Unloading Cuts Downtime for Roll Replacement

Supports feeding rolls up to Φ1000mm and take-up rolls up to Φ450mm with automatic constant tension control, greatly improving continuous production efficiency.

✅ Intelligent Automation for Easy Operation & Low Maintenance

Integrated automatic printhead cleaning & capping, intelligent ink feeding and production data management simplify operation and lower labor dependence and maintenance workload.

Technical Specifications

Model: S8000 Pro Plus-KYRC-32H

Printhead Type: Kyocera Industrial Printhead

Printhead Quantity: 32pcs

Max Printing Speed: 2700㎡/h

Print Width: 2200mm

Print Media: Sublimation Transfer Paper

Ink Type: Sublimation Ink

Available Colors: C, M, Y, K, LC, LM, LK, Grey, Fluorescent Red, Fluorescent Yellow

Ink Tank Capacity: 15L

Ink Supply: Automatic Feeding with Automatic Negative Pressure Control

File Format: TIFF / JPG / EPS / PDF; compatible with RGB / CMYK

Print Platform: Framed Straight-Slot Suction Platform

Drive System: Imported Low-Noise Dual THK Linear Guides, Maglev Motor, Magnetic Grid System

Head Maintenance: Integrated Automatic Cleaning & Capping

Roll Handling: Max feed roll Φ1000mm; max take-up roll Φ500mm

Drying System: Dual Heating with Circulating Infrared Hot Air

Application Fields

Curtain & Home Textile Printing | Bedding Set Printing | Sportswear Printing | Swimsuit & Yoga Apparel Printing

Outdoor Flag & Banner | Decorative Fabric Printing | Large-Scale Digital Printing Factories | 24-Hour Industrial Mass Production Lines
